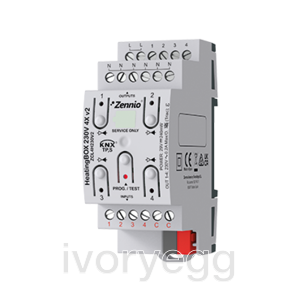

HeatingBOX 230V 4X V2. Heating actuator for up to 4 outputs 230VAC and 4 inputs
Description
Features
- 4 configurable outputs for 230 VAC valve control
- 4 thermostats
- 4 analog/digital inputs
- 10 logic functions
- Manual control through buttons and LED status indicators Common 230 VAC input supply for all the outputs
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 36 mm (2 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp Conformity with the CE, UKCA, RCM directives (marks on the right side)
Zennio Thermostats:
Technical Details
Specification
KNX supply
Voltage (typical): 29 VDC SELV
Voltage range: 21-31 VDC
Maximum consumption
29 VDC (typical): 7.9mA, 229.1mW
24 VDC: 10mA, 240mW
Connection type: Typical TP1 bus connector for 0.8 mm Ø rigid cable
External power supply: 230 V 50/60 Hz
Operation temperature: 0 .. +55 °C
Storage temperature: -20 .. +55 °C
Operation humidity: 5 .. 95%
Storage humidity: 5 .. 95%
Complementary characteristics: Class B
Protection class / Overvoltage category: II / III (4000 V)
Operation type: Continuous operation
Device action type: Type 1
Electrical stress period: Long
Degree of protection / Pollution degree: IP20 / 2 (clean environment)
Installation: Independent device to be mounted inside electrical panels with DIN rail (IEC 60715)
Minimum clearances: Not required
Response on KNX bus failure: Data saving according to parameterization
Response on KNX bus restart: Data recovery according to parameterization
Operation indicator: The programming LED indicates programming mode (red) and test mode (green). Each output LED indicates its status (fixed=active output; flashing=overload or short-circuit). The blue blinking of the programming LED indicates a 3 minutes lock due to the suffering of 4 short-circuits in less than 3 minutes.
Weight: 115 g
PCB CTI index: 175 V
Housing material / Ball pressure test temperature: PC FR V0 halogen free / 75 °C (housing) - 125 °C (connectors)
Properties
Properties
| Technology | KNX |
| Brand | ZENNIO |
| Mounting | DIN Rail |
| Inputs | 4 |
| Operating voltage | 230VAC |
| Outputs | 4 |
| HVAC support | Regulation |
| IP rating | IP20 |
| Mounting Width | 2MW |
