ZENNIO
ZIO-QUADV3

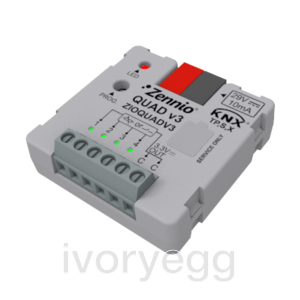

QUAD V3. Input module with 4 analog-digital inputs
Product code:
ZIO-QUADV3
QUAD v3 is an analog/digital sensor that offers a large variety of functionality. Its 4 optocoupled multi-function inputs may be configured as digital inputs for sensors and potential-free push buttons, as temperature probes or as a motion sensor. Four room thermostats for heating/cooling control systems included.
Description
- 4 configurable inputs as binary input, temperature probe (NTC with customizable curve or PT1000) or motion sensor
- With input status LED indicators
- Supports KNX Data Secure
- 4 instances for advanced master light
- 4 thermostats
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- No external supply required different from bus
- Dimensions: 39.1 x 39.1 x 14 mm
- Can be mounted within distribution boxes or wall back boxes or DIN rail
- Conformity with the CE, RCM directives (marks on the front side)
Technical Details
Specification
Properties
Properties
| Technology | KNX |
| Brand | ZENNIO |
| Mounting | Recessed |
| Inputs | 4 |
| Operating voltage | KNX Bus (29VDC) |
| HVAC support | Regulation |
| IP rating | IP20 |
| KNX Secure | Yes |
