ZENNIO
ZIOMCB12

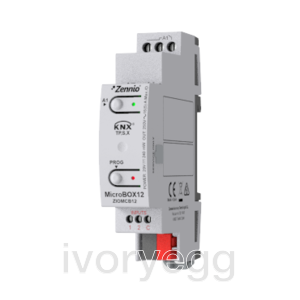

MicroBOX 12. KNX actuator with KNX Secure - 1 output 16A / 2 inputs A/D
Product code:
ZIOMCB12
Multifunction actuator for DIN-rail (1 unit) with 1 outputs (16 A C-load). It allows manual control of its output through the push button on the cover and monitor the status. It also includes a logical function module with 10 functions. It incorporates 2 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. It is compatible with KNX Secure.
Description
- 1 individual output
- KNX Data Secure supported
- 2 analog/digital inputs
- Manual output operation with push button and LED status indicator
- 10 logic functions
- Output timing
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 17.5 mm (1 DIN unit)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Conformity with the CE, RCM directives (marks on the right side)
Technical Details
Properties
Properties
| Technology | KNX |
| Brand | ZENNIO |
