ZENNIO
ZPR88V2

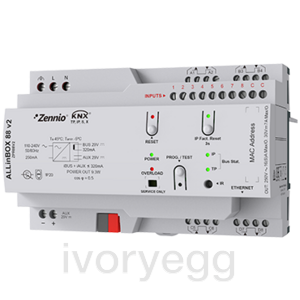

ALLinBOX 88 V2. Multifunction device with KNX power supply, KNX-IP Interface, 8 outputs/8 inputs and logic module
Product code:
ZPR88V2
Multifunction device that integrates all the necessary for the control and monitor of facilities320 mA, a KNX-IP Interface, a climate controller with up to 4 independent thermostats, a logical module and a multifunction actuator with 8 inputs and 8 outputs (16 A C-Load), which offers multiple configurations as individual outputs, shutter channels or fan coil controller.
Description
FEATURES
- 320mA KNX power supply with 29VDC auxiliary output.
- 110-240VAC 50/60Hz power input.
- KNX system voltage supply and monitorisation
- Short-circuit and overvoltage protection.
- Reset button and overload status LED.
- KNXnet/IP tunneling protocol (up to 5 connections).
- Maximum APDU length of 254bytes.
- Ethernet 10/100 BaseT IP with RJ45 socket.
- 2 different configurable blocks: shutter channels (up to 4), individual outputs (up to 8) and 2/4-pipe fan coil controls (up to 1).
- Outputs suitable for capacitive loads, maximum 140μF.
- Manual output operation through remote control.
- 8 analog/digital inputs.
- Climate control for up to 4 rooms.
- Output timing.
- 20 logic functions.
- Total data saving on KNX bus failure.
- Integrated KNX BCU.
- Dimensions 67 x 90 x 140 mm (8 DIN units).
- DIN rail mounting (EN 50022), with fixing clamp.
- Possibility of connecting different phases in adjacent channels.
- Conformity with the CE directives (CE-mark on the right side).
Technical Details
Properties
Properties
| Technology | KNX |
| Brand | ZENNIO |
