ZENNIO
ZSYIOT

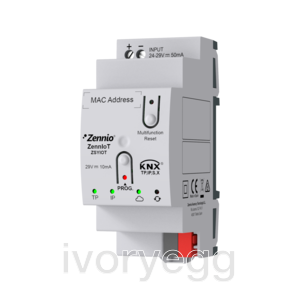

ZennIoT. Device for control with Zennio Remote
Product code:
ZSYIOT
DIN rail device (2 units) that allows the remote control of the installation through Zennio Remote, being able to distribute 100 controls in up to 12 customizable pages. It features a KNX-IP interface, which allows addressing, programming or monitoring components located in a KNX TP network from the Ethernet side by using KNXnet/IP Tunneling protocol, with up to 10 parallel connections. It includes 10 logical functions. It is compatible with KNX Secure.
Description
- KNXnet/IP tunnelling protocol (up to 10 connections)
- Maximal APDU length of 254 bytes
- NTP clock functionality
- KNX Data Secure supported and KNX IP Secure
- Remote control with Zennio Remote
- Compatibility with ZenVoice through license
- External 24-29 VDC power supply
- Ethernet connection RJ45 10/100Mbps Base T
- 10 logic functions
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 36 mm (2 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Conformity with the CE, RCM directives (marks on the right side)
- License to expand the number of controls to 240:
- Ref. ZLICR240V – Virtual License
- Ref. ZLICR240BX – Box License
- ZenVoice License – Voice Control License:
- Ref. 8500008 – Virtual License
- Ref. ZLICZVBX – Box License
Technical Details
Properties
Properties
| Technology | KNX |
| Brand | ZENNIO |
