ZENNIO
ZIORQ6

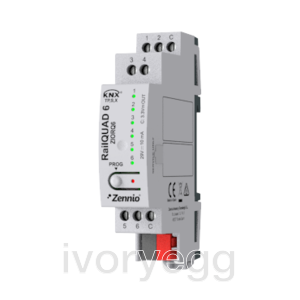

RailQUAD 6. Input module with 6 analog-digital inputs for DIN rail with status indicator LEDs.
Product code:
ZIORQ6
The analog/digital inputs can be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Four room thermostats for heating/cooling control systems included. It is compatible with KNX Secure. Accessories: Temperature probes and motion sensor.
Description
- 6 analog/digital configurable inputs as binary input, temperature probe (NTC with customizable curve or PT1000) or motion sensor
- With input status LED indicators
- KNX Data Secure supported
- 4 thermostats
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- No external supply required different from bus
- Dimensions 67 x 90 x 18.1 mm (1 DIN unit)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Conformity with the CE, RCM directives (marks on the right side)
Technical Details
Properties
Properties
| Brand | ZENNIO |
