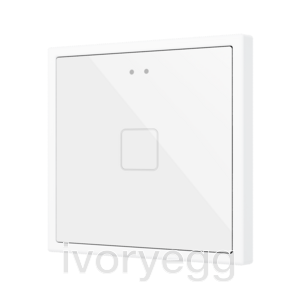

Flat RGB 70 X1. Glass Capacitive push button 70x70 - 1 button - White
Description
- Customizable printed glass touch panel with 1/2/4/6 touch areas with RGB backlight and image customizable through web application
- Supports KNX Data Secure
- Thermostat
- 2 analog/digital inputs
- Built-in temperature sensor
- Touch confirmation through acoustic feedback
- Proximity sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 70.4 x 70.4 x 36.2 mm (it protrudes 9 mm from the wall)
- Portrait or landscape flush mount on standard European, Italian, Australian and American mounting box
- Conformity with the CE, RCM directives (marks on the back side)
Technical Details
Specification
Number of inputs: 2
Inputs per common: 2
Operation voltage: 3.3 VDC in the common
Operation current: 1 mA @ 3.3 VDC (per input)
Switching type: Dry voltage contacts between input and common
Connection method: Pluggable screw terminal block (0.2 Nm max.)
Cable cross-section: 0.2-1.5 mm² (IEC) / 28-14 AWG (UL)
Maximum cable length: 30 m
NTC accuracy (@ 25 °C) ²: ±0.5 °C
Temperature resolution: 0.1 °C
Maximum response time: 10 ms
Properties
Properties
| Technology | KNX |
| Brand | ZENNIO |
| KNX Secure | Yes |
